Parent Layer: Resident

Name: FISH RESIDENT ARC

Display Field: SPECIES_CD

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: FISH_RESIDENT_ARC: This feature class is used to determine whether a particular resident fish species is present in a stream, which can affect protection buffer widths in land management plans and activities. The data comes primarily from the Hydro Update Project, and is from actual observations or from modeled fish presence. While each district carried out their determinations in various ways, generally verification means that the fish biologist or other trained specialist was able to see the fish at the stream.

Copyright Text: OR/WA BLM

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.3864255370159091E7
YMin: 5048328.811512676
XMax: -1.2964610436474087E7
YMax: 6274869.057728208
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: PRESENCE_CD
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: AV
  Label: AV – Absence Verified / Species Not Detected
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 0, 0, 255]
  Width: 2
• Value: PNV
  Label: PNV – Presence Suspected, Not Verified
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 0, 255]
  Width: 2
• Value: PV
  Label: PV - Presence Verified / Species Detected
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 77, 168, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: ObjectID )
• SPECIES_CD ( type: esriFieldTypeString, alias: SPECIES_CD, length: 10 , Coded Values: [ENSI: Entosphenus similis / Klamath River Lamprey] , [ENTRA: Entosphenus tridentatus / Goose Lake Lamprey] , [ENTRB: Entosphenus tridentatus / Upper Klamath Basin Pacific Lamprey] , ...60 more... )
• PRESENCE_CD ( type: esriFieldTypeString, alias: PRESENCE_CD, length: 3 , Coded Values: [PV: PV – Presence Verified] , [PNV: PNV – Presence Suspected, Not Verified] , [AV: AV – Absence Verified] )
• OBS_DT ( type: esriFieldTypeDate, alias: OBS_DT, length: 8 )
• FISH_METHOD ( type: esriFieldTypeString, alias: FISH_METHOD, length: 30 , Coded Values: [Field Surveyed: Field Surveyed - The systematic observation, identification and collection of quantitative information describing fish or fish habitat, following a standardized methodology (Electrofishing, Spawning Surveys, eDNA, Snorkel, etc.).] , [Professional Opinion/Modeled: Professional Opinion/Modeled - Professional Opinion: An opinion formulated by an individual biologist from a natural resource agency or tribe. Generally, this is Presence Not Verified (PNV). Modeled: A schematic description of a system, theory, or phenomenon that accounts for its known or inferred properties and may be used for further study of its characteristics (ex. LiDAR, Digital Elevation Models, Species Occupancy Model, etc.). Generally, this is Presence Not Verified (PNV).] , [Other: Other - Alternate methods used that are not captured in the other methods. To be described in Comments field (ex. HydConversion). Generally, this is Presence Not Verified (PNV).] )
• EXT_PRESENCE_CD ( type: esriFieldTypeString, alias: EXT_PRESENCE_CD, length: 50 , Coded Values: [BLM Downstream Trace: BLM Downstream Trace] , [CCTIC Presence or Documented Downstream: CCTIC Presence or Documented Downstream] , [ODF Verfish, Unverified: ODF Verfish, Unverified] , ...21 more... )
• EXT_SOURCE ( type: esriFieldTypeString, alias: EXT_SOURCE, length: 50 )
• EXT_OBS_DT ( type: esriFieldTypeDate, alias: EXT_OBS_DT, length: 8 )
• COMMENTS ( type: esriFieldTypeString, alias: COMMENTS, length: 1000 )
• EVENTDATE ( type: esriFieldTypeDate, alias: EVENTDATE, length: 8 )
• REACHCODE ( type: esriFieldTypeString, alias: REACHCODE, length: 14 )
• REACHSMDATE ( type: esriFieldTypeDate, alias: REACHSMDATE, length: 8 )
• REACHRESOLUTION ( type: esriFieldTypeInteger, alias: ReachResolution , Coded Values: [1: Local] , [2: High] , [3: Medium] )
• FMEASURE ( type: esriFieldTypeDouble, alias: FMEASURE )
• TMEASURE ( type: esriFieldTypeDouble, alias: TMEASURE )
• EVENTOFFSET ( type: esriFieldTypeDouble, alias: EVENTOFFSET )
• PERMANENT_IDENTIFIER ( type: esriFieldTypeString, alias: PERMANENT_IDENTIFIER, length: 40 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• SHAPE_Length ( type: esriFieldTypeDouble, alias: SHAPE_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

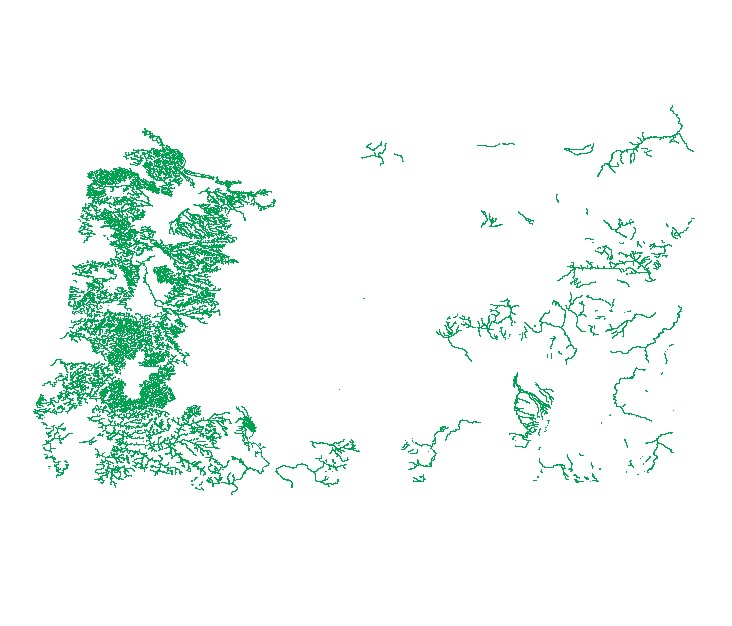

  Iteminfo   Thumbnail   Metadata
