Name: Hydrographic Point Features

Display Field: GNIS_NAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: HYD_PUB_POINT: This dataset contains point features from the US Geologic Survey (USGS) High Resolution National Hydrography Dataset (NHD). NHD point features include springs, seeps, wells,etc. Additional attributes have been added from the Bureau of Land Management (BLM) Aquatic Resources Information Management System (ARIMS). This data will be refreshed as-needed to reflect updates to the NHD and ARIMS.

Copyright Text: USGS National Hydrography Dataset (NHD): Aquatic Resources Information System (ARIMS)

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 250000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.3889492844662707E7
YMin: 4983751.806966696
XMax: -1.2866871609584639E7
YMax: 6500430.535343916
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: FType
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 458
  Label: SpringSeep
  Description: N/A
  Symbol:

• Value: 488
  Label: Well
  Description: N/A
  Symbol:

• Value: 487
  Label: Waterfall
  Description: N/A
  Symbol:

• Value: 431
  Label: Rapids
  Description: N/A
  Symbol:

• Value: 367
  Label: Gaging Station
  Description: N/A
  Symbol:

• Value: 436
  Label: Reservoir
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [89, 51, 255, 255]
  Size: 8.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
• Value: 450
  Label: SinkRise
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [0, 191, 204, 255]
  Size: 6.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 485
  Label: Water IntakeOutflow
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [0, 128, 242, 255]
  Size: 6.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 441
  Label: Rock
  Description: N/A
  Symbol:

• Value: 343
  Label: DamWeir
  Description: N/A
  Symbol:

• Value: 369
  Label: Gate
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression: [GNIS_NAME]
Use Coded Values: true
Symbol:
Color: [0, 92, 230, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Times New Roman
Font Style: italic
Font Weight: normal
Font Decoration: none

Min. Scale: 2000000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: FTYPE

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• PERMANENT_IDENTIFIER ( type: esriFieldTypeString, alias: PERMANENT_IDENTIFIER, length: 40 )
• GNIS_ID ( type: esriFieldTypeString, alias: GNIS_ID, length: 10 )
• GNIS_NAME ( type: esriFieldTypeString, alias: GNIS_NAME, length: 65 )
• LOCAL_NAME ( type: esriFieldTypeString, alias: LOCAL_NAME, length: 50 )
• REACHCODE ( type: esriFieldTypeString, alias: REACHCODE, length: 14 )
• FTYPE ( type: esriFieldTypeInteger, alias: FType )
• FCODE ( type: esriFieldTypeInteger, alias: FCode , Coded Values: [45000: Sink/Rise] )
• NHD_FLOW ( type: esriFieldTypeString, alias: NHD_FLOW, length: 3 )
• FTR_ORGANIZATION ( type: esriFieldTypeString, alias: FTR_ORGANIZATION, length: 255 )
• FTR_SOURCE_DT ( type: esriFieldTypeDate, alias: FTR_SOURCE_DT, length: 8 )
• PUB_DATE ( type: esriFieldTypeDate, alias: PUB_DATE, length: 8 )
• SUBBASIN ( type: esriFieldTypeString, alias: SUBBASIN, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• FTR_SOURCE_INTERP ( type: esriFieldTypeString, alias: FTR_SOURCE_INTERP, length: 255 )
• EDIT_PENDING ( type: esriFieldTypeString, alias: EDIT_PENDING, length: 3 )

Types:

ID: 450
Name: SinkRise
Domains:
• FCODE:
  Inherited

---

ID: 458
Name: SpringSeep
Domains:
• FCODE:
  Coded Values: [45800: Spring/Seep]

---

ID: 398
Name: Lock Chamber
Domains:
• FCODE:
  Coded Values: [39800: Lock Chamber]

---

ID: 343
Name: DamWeir
Domains:
• FCODE:
  Coded Values: [34300: Dam/Weir] , [34305: Dam/Weir: Construction Material = Earthen] , [34306: Dam/Weir: Construction Material = Nonearthen]

---

ID: 367
Name: Gaging Station
Domains:
• FCODE:
  Coded Values: [36700: Gaging Station] , [36701: Gaging Station: Gaging Station Status = Active; Record = Continuous]

---

ID: 485
Name: Water IntakeOutflow
Domains:
• FCODE:
  Coded Values: [48500: Water Intake/Outflow]

---

ID: 487
Name: Waterfall
Domains:
• FCODE:
  Coded Values: [48700: Waterfall]

---

ID: 488
Name: Well
Domains:
• FCODE:
  Coded Values: [48800: Well]

---

ID: 431
Name: Rapids
Domains:
• FCODE:
  Coded Values: [43100: Rapids]

---

ID: 369
Name: Gate
Domains:
• FCODE:
  Coded Values: [36900: Gate]

---

ID: 436
Name: Reservoir
Domains:
• FCODE:
  Coded Values: [43600: Reservoir] , [43618: Reservoir: Construction Material = Earthen] , [43619: Reservoir: Construction Material = Nonearthen] , ...20 more...

---

ID: 441
Name: Rock
Domains:
• FCODE:
  Coded Values: [44100: Rock] , [44101: Rock: Relationship to Surface = Abovewater] , [44102: Rock: Relationship to Surface = Underwater]

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

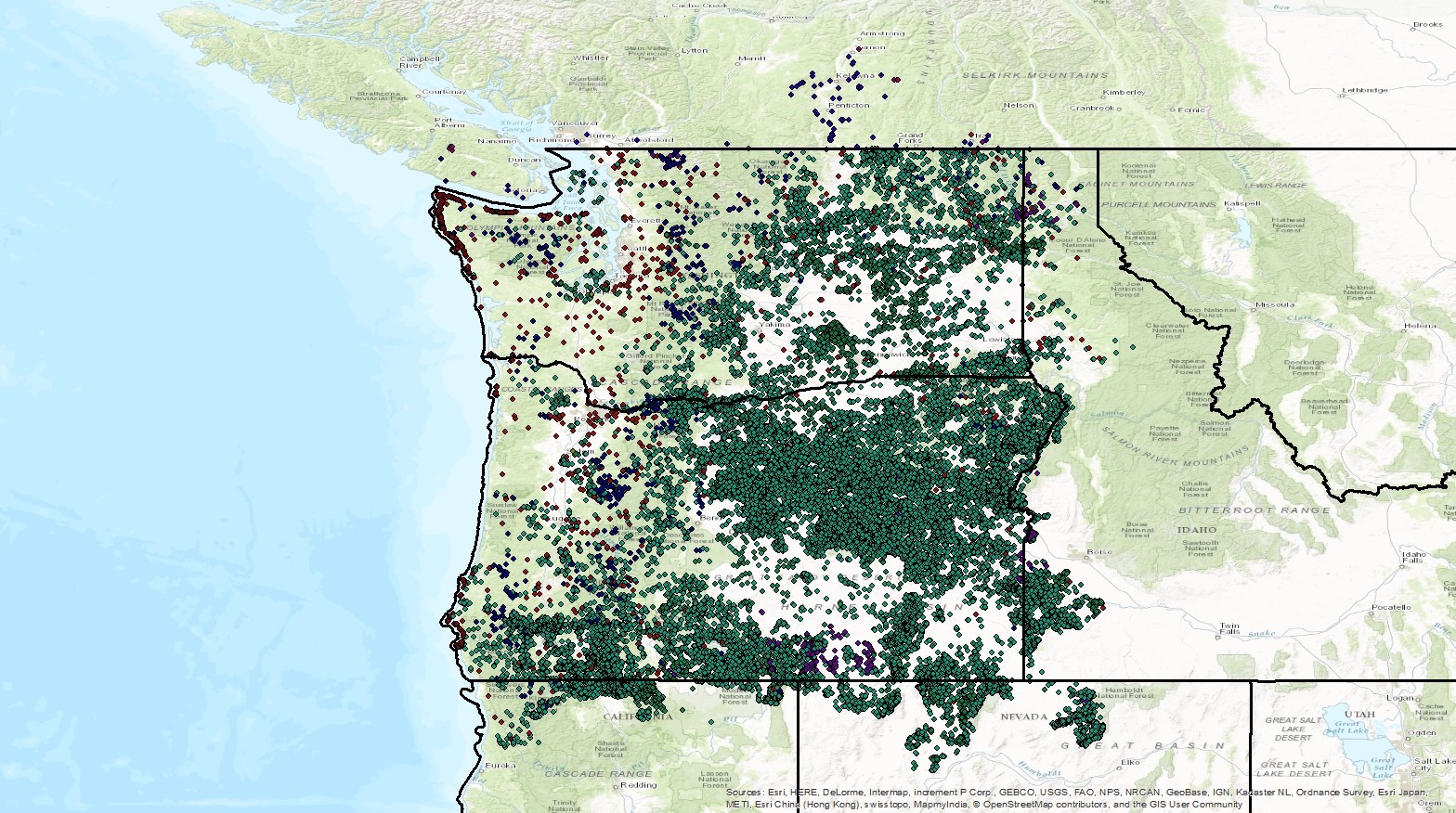

  Iteminfo   Thumbnail   Metadata
