Name: Grazing Allotment Boundaries

Display Field: ALLOT_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

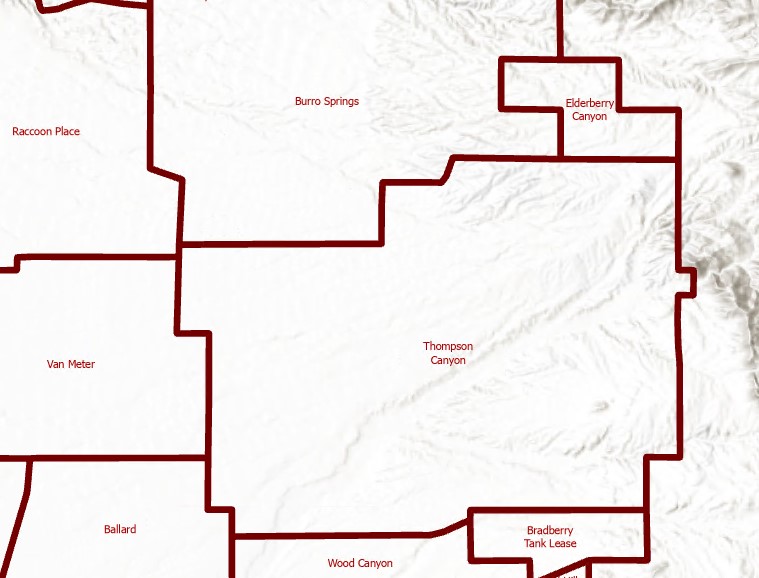

Description: This polygon feature class represents the spatial extent and boundaries for BLM Grazing Allotments.

Copyright Text: BLM Admin State

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 9244650

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 111961.02400000021
YMin: 3471345.5635
XMax: 681841.5376000004
YMax: 4099780.1406999994
Spatial Reference: 26913  (26913)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 77, 168, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: [ALLOT_NAME] CONCAT NEWLINE CONCAT [ALLOT_NO]
Use Coded Values: true
Symbol:
Color: [0, 77, 168, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 9
Font Family: Constantia
Font Style: italic
Font Weight: bold
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ALLOT_NO ( type: esriFieldTypeString, alias: Allotment Number, length: 5 )
• ALLOT_NAME ( type: esriFieldTypeString, alias: Allotment Name, length: 50 )
• GIS_ACRES ( type: esriFieldTypeDouble, alias: GIS Acres )
• ADMIN_ST ( type: esriFieldTypeString, alias: Administrative State Code, length: 2 , Coded Values: [AK: Alaska] , [AZ: Arizona] , [CA: California] , ...9 more... )
• ADM_OFC_CD ( type: esriFieldTypeString, alias: Administrative Office Code, length: 6 )
• ADM_UNIT_CD ( type: esriFieldTypeString, alias: Adminstrative Unit Code, length: 8 , Coded Values: [NMA00000: ALBUQUERQUE DISTRICT OFFICE] , [NM006000: AMARILLO FIELD OFFICE] , [NMP02000: CARLSBAD FIELD OFFICE] , ...16 more... )
• ST_ALLOT ( type: esriFieldTypeString, alias: Managing State Allotment Number, length: 7 )
• ACTIVE_DT ( type: esriFieldTypeDate, alias: Allotment Active Date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
