Name: BLM NM Realty Polys - Issued (1:250,000)

Display Field: CASENAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: The Realty data standard is a spatial representation of the Mineral & Land Records System (MLRS) app. A right of way (ROW) authorization allows the holder to occupy, use, or traverse public lands granted for the purposes listed in Title V of Federal Lands Policy Management Act (FLPMA), the Mineral Leasing Act (MLA), and pre-FLPMA statutes. ROW data will assist in land use planning, scoping of proposed projects, granting of ROWs, and monitoring ROWS and unauthorized uses. It will also be used to maintain records regarding ROWs. There are 4 important locations for ROW: 1) the aliquot parts for the right of way (Legal Land Description (LLD); 2) the authorized area and center line; 3) the ‘as built’ (completed facility); and 4) the surface disturbances caused by the ROW construction. Other locations will be needed in the future, to include photographs of the facilities and surface disturbances, and the location of ancillary facilities that are part of the same case number.

Copyright Text: New Mexico BLM Region Realty and GIS Specialists provided input in the development of this data standard and the contents contained herein.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 250000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.2228613328225028E7
YMin: 3672059.8826676533
XMax: -1.1465885815869452E7
YMax: 4441407.786516233
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSDiagonalCross
Color: [0, 0, 0, 255]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 25
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ADMIN_ST ( type: esriFieldTypeString, alias: Administrative State, length: 2 , Coded Values: [AK: Alaska] , [AZ: Arizona] , [CA: California] , ...9 more... )
• ADM_UNIT_CD ( type: esriFieldTypeString, alias: Administrative Unit Code, length: 8 , Coded Values: [NM004400: OKLAHOMA FIELD STATION] , [NMF00000: FARMINGTON DISTRICT OFFICE] , [NMP01000: ROSWELL FIELD OFFICE] , ...14 more... )
• AUTHORITY ( type: esriFieldTypeString, alias: Authority, length: 30 , Coded Values: [FLPMA: FLPMA] , [Pre-FLPMA: Pre-FLPMA] , [MLA: MLA] , ...4 more... )
• HOLDER ( type: esriFieldTypeString, alias: Holder, length: 40 )
• CASENAME ( type: esriFieldTypeString, alias: Case Name, length: 100 )
• FACILTYPE ( type: esriFieldTypeString, alias: Facility Type (BLM Product), length: 30 , Coded Values: [Road Feature: Road Feature] , [Communications Site Feature: Communications Site Feature] , [Telecommunications Feature: Telecommunications Feature] , ...10 more... )
• SERIALNUMBER ( type: esriFieldTypeString, alias: Serial Number (MLRS), length: 30 )
• LEG_CSE_NR ( type: esriFieldTypeString, alias: Legacy Case Serial Number, length: 30 )
• ISSUE_DATE ( type: esriFieldTypeDate, alias: Issue Date, length: 8 )
• EXPIRE_DATE ( type: esriFieldTypeDate, alias: Expiration Date, length: 8 )
• CONSTRUCTIONSTAT ( type: esriFieldTypeString, alias: Construction Status, length: 50 , Coded Values: [Partial: Partial] , [Complete: Complete] , [Abandoned (5 years after issuance date): Abandoned (5 years after issuance date)] , ...1 more... )
• ACRES ( type: esriFieldTypeDouble, alias: Acres )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 500 )
• NEPA_LogNo ( type: esriFieldTypeString, alias: NEPA Log Number (IT4RM), length: 30 )
• IT4RM_HYPLNK ( type: esriFieldTypeString, alias: IT4RM Hyperlink, length: 250 )
• MLRS_HYPLNK ( type: esriFieldTypeString, alias: MLRS Hyperlink, length: 250 )
• XREF ( type: esriFieldTypeString, alias: Cross Reference/XRef, length: 50 )
• ONBASE ( type: esriFieldTypeString, alias: OnBase, length: 50 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

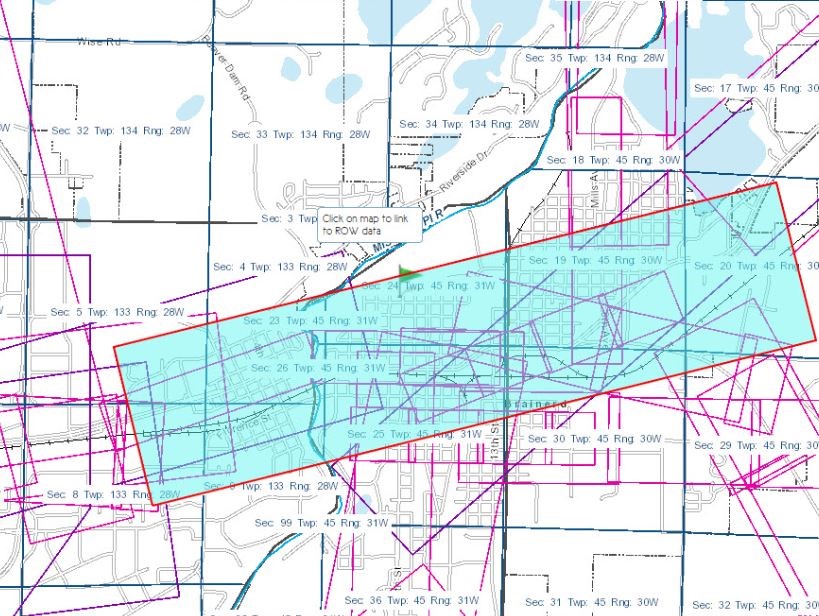

  Iteminfo   Thumbnail   Metadata
